How to Build a Pergola Attached to the House | DIY Guide

Last Updated on July 19, 2023 by Kimberly Crawford

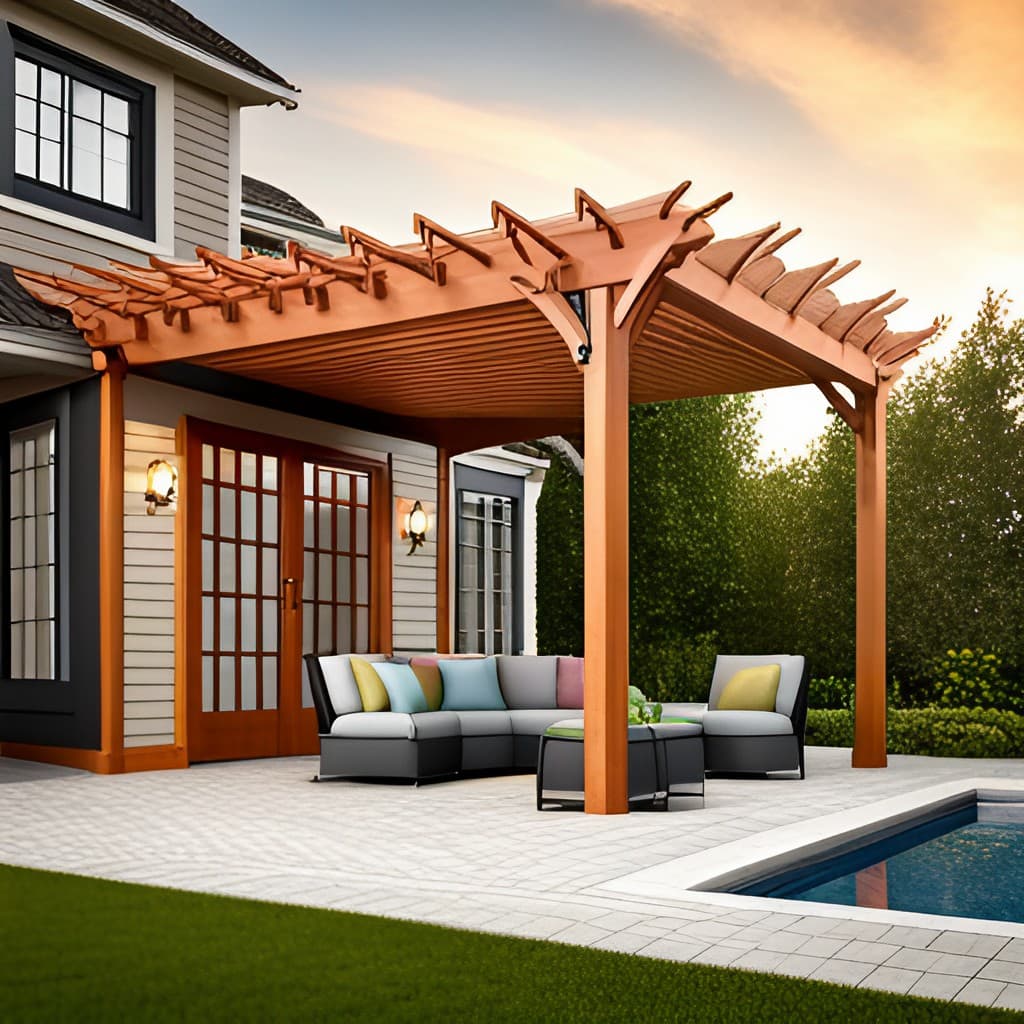

A pergola is a beautiful and functional addition to any home. Essentially, it’s an outdoor structure, typically made from wood, vinyl, or metal, consisting of columns that support a roofing grid of beams and rafters. This grid can be left open or covered to create an area sheltered from the elements. Pergolas can be freestanding or attached to a house.

Building a pergola attached to your house can provide several benefits. For one, it extends your living space, creating a comfortable outdoor area perfect for entertaining or simply relaxing. It can also provide shade and protection from the elements, making your outdoor space usable even on hot or rainy days.

Furthermore, a well-designed pergola can enhance your home’s aesthetic appeal, potentially increasing its value. In the following sections, we will guide you through the process of building your very own pergola attached to your house.

Tools and Materials Needed

To build a pergola attached to your house, you’ll need a variety of tools and materials. Here’s a general list to get you started, but note that the exact quantities will vary depending on the size and design of your pergola.

Tools:

1. Measuring tape
2. Level
3. Circular saw or handsaw
4. Power drill
5. Screwdriver
6. Post hole digger
7. Ladder
8. Hammer
9. Safety glasses and gloves

Materials:

1. Wooden posts (4×4 or 6×6 depending on the size of your pergola)
2. Beams (2×6 or 2×8)
3. Rafters (2×4 or 2×6)
4. Ledger board (2×6 or 2×8)
5. Concrete mix for setting posts
6. Screws and nails suitable for outdoor use
7. Metal post bases and brackets
8. Wood stain or paint (optional)

Remember to choose materials that can withstand the weather conditions in your area. For instance, if you live in a humid climate, consider using pressure-treated wood or wood species that are naturally resistant to rot and insects, such as cedar or redwood. Always wear safety gear when handling tools and materials to prevent injuries.

Choosing the Right Location

Determining the ideal location for your pergola is crucial. It can greatly influence how much you enjoy your new outdoor space. Here are some tips and considerations to help you choose the perfect spot:

1. Sunlight: Consider the path of the sun at different times of the day and year. If your primary goal is to create a shaded area, you’ll want to position your pergola where it can block the most sunlight. If possible, try to orient your pergola’s longer sides north and south. When the sun moves from east to west, it will pass over the top of the structure, providing more shade.
2. View: What do you want to see when sitting under your pergola? Is there a beautiful garden, a stunning sunset, or a charming landscape you’d like to highlight? Place your pergola in a spot where it frames these views.
3. House Structure: Since the pergola will be attached to your house, you need to consider the design and structure of your home. The pergola should align with the style and proportions of your house. Moreover, make sure the wall where you plan to attach the pergola is strong enough to support the additional weight.
4. Privacy: If privacy is a concern, consider the sightlines from your neighbors’ houses and public areas. You might want to position your pergola in a way that creates a private retreat.
5. Accessibility: Your pergola should be easily accessible from your house. Placing it near a back door or sliding patio door can make it feel like a natural extension of your indoor living space.

Designing the Pergola

Designing your pergola is an exciting process where you can let your creativity shine. There are various designs to choose from, and your final decision will greatly influence the look and feel of your outdoor space. Here are some factors to consider when designing your pergola:

1. Size: The size of your pergola should be proportionate to the size of your house and yard. A large pergola might overwhelm a small yard, while a small pergola could look insignificant in a large open space. Also, consider what you’ll be using the pergola for. If you plan to entertain large groups, you’ll need more space than if it’s just for a small family gathering.
2. Shape: Pergolas typically come in rectangular or square shapes, but don’t let that limit you. You can also design a circular or hexagonal pergola, or even one with an irregular shape. Just make sure the shape fits well with the rest of your house and yard.
3. Style: The style of your pergola should match or complement your home’s architectural style. For instance, a sleek, modern pergola might look out of place next to a Victorian-style house. Consider the materials, colors, and decorative elements when defining your pergola’s style.
4. Roofing: Decide whether you want your pergola to have a solid roof, a slatted one, or no roof at all. A solid roof will provide more shade and protection from rain, but it will also block more light. A slatted roof will let in some sunlight while still providing some shade.
5. Extras: Think about any extra features you’d like to add to your pergola. This could include built-in benches, planters, a swing, curtains for added privacy, or even a fire pit.

Preparing the Site

Before you can start building your pergola, you need to prepare the site. This involves a few key steps:

1. Clearing the Area: Remove any objects, debris, or vegetation from the area where you’ll be building the pergola. This includes grass, plants, rocks, and even outdoor furniture. The aim is to have a clean, unobstructed space to work.
2. Leveling the Ground: It’s crucial that the ground where your pergola will stand is level. This ensures the stability of the structure and makes construction easier. You can use a long level or a laser level to check the ground. If the area isn’t level, you may need to dig or fill in dirt until it is.
3. Marking the Post Positions: Once the area is clear and level, mark the positions of the posts. Use your design plans and measurements to ensure accurate placement. It’s a good idea to double-check these marks before proceeding to the next step.
4. Digging Post Holes: Using a post hole digger, dig holes for the posts according to your marked positions. The depth of the holes will depend on the height of your pergola and local building regulations, but they should typically be about one-third the length of your posts.

The preparation stage may not be the most exciting part of building a pergola, but it’s one of the most important. Taking the time to properly prepare the site will make the construction process smoother and help ensure the longevity and stability of your pergola.

Constructing the Pergola

1. Setting Up the Pergola Posts

Setting up the posts correctly is critical to the stability of your pergola. Here are detailed steps on how to do it:

1. Prepare the Posts: Depending on your design, you may need to plane or stain the posts before installation. This can include trimming them to the right height and treating them with a weather-resistant stain or paint.
2. Position the Post Bases: Position the metal post bases in the holes you previously dug during site preparation. Make sure they are aligned with the markings for your posts.
3. Pour the Concrete: Mix the concrete according to the manufacturer’s instructions. Pour it into the holes around the post bases until it’s level with the ground. Allow the concrete to set according to the package directions. This usually takes at least 24 hours.
4. Mount the Posts: Once the concrete has set, you can mount the posts to the bases. Depending on the type of base, this typically involves sliding the post into the base and securing it with screws or bolts.
5. Check for Level and Plumb: Use a level to ensure each post is perfectly vertical (plumb) and that the tops of the posts are level with each other. If necessary, make adjustments while the concrete is still wet.
6. Secure the Posts: After checking that the posts are level and plumb, secure them firmly to the post bases using the appropriate screws or bolts.
7. Let the Concrete Cure: Allow the concrete to fully cure before proceeding with the rest of the construction. This ensures the posts are securely anchored and ready to support the weight of the pergola.

2. Attaching the Ledger Board to the House

The ledger board is an important component of a pergola that is attached to a house, as it helps to evenly distribute the weight and provides a secure connection between the house and the pergola. Here’s how to attach it:

1. Determine the Height: The height of the ledger board should match the height of the posts. Use a level to ensure the ledger board will be perfectly horizontal.
2. Prepare the Wall: If your house has siding, you’ll need to cut out a section of it to fit the ledger board. Mark the area where the ledger board will go, then use a circular saw to carefully cut the siding away. Be careful not to damage the underlying wall.
3. Position the Ledger Board: Hold the ledger board up against the house, making sure it’s level and at the correct height. Mark the positions of the bolt holes on the wall.
4. Drill Pilot Holes: Remove the ledger board and drill pilot holes into the wall where you’ve marked. The holes should be slightly smaller than the diameter of your bolts.
5. Attach the Ledger Board: Hold the ledger board back up against the wall, aligning the bolt holes in the board with the pilot holes in the wall. Insert the bolts and tighten them until the ledger board is securely attached to the wall. It may be helpful to have someone assist you with this step.
6. Check for Level: Once the ledger board is attached, use a level to make sure it’s still horizontal. If it’s not, adjust as necessary.
7. Seal the Top: To prevent water from getting behind the ledger board and causing damage, seal the top edge with silicone caulk or install a piece of flashing.

Remember, attaching a ledger board involves making permanent changes to your house, so it’s important to get it right. Always double-check your measurements and levels, and don’t hesitate to seek professional help if needed.

Sources:

• Decks.com
• Trex

3. Attaching the Beams to the Posts and Ledger Board

Once your posts and ledger board are securely in place, you can begin attaching the beams. These will form the main support for the roof of your pergola. Here’s how to do it:

1. Measure and Mark: Determine where on the posts and ledger board you want your beams to sit. Typically, they should be flush with the top of the posts. Measure and mark these spots carefully.
2. Prepare the Beams: Cut your beams to the appropriate length, considering the size of your pergola and the overhang you want on each side. If needed, treat the cut ends with a wood preservative.
3. Position the Beams: Position your first beam on top of the posts and against the ledger board, aligning it with the marks you made earlier. It may be helpful to have someone assist you with this step due to the weight and size of the beams.
4. Check for Level: Use a level to ensure the beam is perfectly horizontal. If it’s not, adjust as necessary.
5. Secure the Beams: Once the beam is level, secure it to the posts and ledger board using galvanized screws or bolts.
6. Repeat for Additional Beams: Repeat the above steps for each additional beam, ensuring they’re evenly spaced and parallel to each other. The spacing will depend on the size of your pergola and the design you’ve chosen.

Sources:

• This Old House
• Family Handyman

4. Installing the Pergola Rafters

Once your beams are securely in place, it’s time to add the rafters. These are the horizontal pieces that will run perpendicular to your beams and create the roof of your pergola. Here’s how to do it:

1. Measure and Cut: Determine the length and number of rafters you’ll need based on the size of your pergola and your desired spacing. Remember to account for an overhang on both sides. Cut your rafters to length and treat the cut ends with a wood preservative, if necessary.
2. Mark the Spacing: Mark where each rafter will go on your beams. The spacing between rafters typically ranges from 12 to 24 inches depending on your preference and the level of shade you want to achieve.
3. Position the Rafters: Place your first rafter on top of the beams, aligning it with your marks. It should be perpendicular to the beams and parallel to the ledger board.
4. Secure the Rafters: Once the rafter is positioned correctly, secure it to the beams using galvanized screws or bolts. Repeat this process for each additional rafter, ensuring they’re evenly spaced and parallel to each other.
5. Double-Check Your Work: After all the rafters are installed, take a step back and look at your pergola from a distance. Check that the rafters are evenly spaced and aligned correctly.

5. Finishing Touches for Your Pergola

Once the basic structure of your pergola is complete, you can begin adding finishing touches that will make it truly unique and cater to your needs. Here are some suggestions:

1. Shades: If you want more shade under your pergola, consider adding a canopy or shade cloth. These can be attached directly to your rafters and come in a variety of colors and styles to match your outdoor decor.
2. Lights: Outdoor string lights, lanterns, or LED strips can add a beautiful glow to your pergola in the evenings. You can hang them from the rafters or wrap them around the posts for a festive look.
3. Climbing Plants: Planting climbing plants like ivy, wisteria, or grapevines at the base of your pergola can add a touch of natural beauty. Over time, these plants will grow up and over the pergola, providing additional shade and a stunning visual effect.
4. Furniture: Consider what furniture you’ll place under your pergola. This could include an outdoor dining set, comfy lounge chairs, a hammock, or even an outdoor kitchen or bar.
5. Decorative Elements: Consider adding decorative elements like hanging planters, wind chimes, or even a bird feeder. These small details can really personalize your space.
6. Paint or Stain: Lastly, consider whether you want to paint or stain your pergola. This can help protect the wood from the elements and add a pop of color to your backyard.

Maintenance and Care of Your Pergola

Maintaining a pergola can extend its lifespan and keep it looking its best. Here are some general recommendations:

1. Regular Cleaning: Use warm soapy water and a soft brush to remove dirt, dust, grime, and stains. This not only keeps your pergola looking fresh but also prevents the build-up of mold and mildew.
2. Inspect Regularly: Check your pergola regularly for signs of damage or wear. Look for loose bolts or screws, cracked or rotting wood, and peeling paint or stain.
3. Prompt Repairs: If you find any damage, repair it as soon as possible to prevent further deterioration. This might involve tightening hardware, replacing damaged wood, or applying touch-up paint or stain.
4. Re-stain or Paint: If your pergola is made of wood, it’s recommended to re-stain it every 3-5 years to maintain its appearance and protect the wood. Use a bristle brush to apply the stain evenly.
5. Trim Nearby Plants: Keep nearby trees and bushes trimmed so that limbs don’t fall on your pergola and cause damage. Also, if you have climbing plants on your pergola, keep them pruned to prevent them from overtaking the structure.
6. Winter Care: If you live in a region with harsh winters, consider removing any fabric or canopies during the winter months to avoid damage from snow and ice.

Conclusion

Building a pergola attached to the house is a rewarding DIY project that can enhance your outdoor living space and provide an inviting spot for relaxation and entertainment. Here’s a quick recap of the steps:

1. Set Up the Posts: Start by preparing and setting up the posts. Ensure they are level, securely anchored in concrete, and correctly positioned.
2. Install the Ledger Board: Attach the ledger board to your house, making sure it’s level and securely bolted.
3. Attach the Beams: Position and secure the beams to the posts and ledger board, ensuring they’re level and evenly spaced.
4. Add the Rafters: Install the rafters perpendicular to the beams, keeping them evenly spaced and parallel to each other.
5. Finishing Touches: Personalize your pergola with additions like shades, lights, climbing plants, or outdoor furniture.
6. Maintenance and Care: Regular cleaning, prompt repairs, and protection from weather damage will help keep your pergola looking its best for years to come.

Building a pergola may seem like a big task, but with careful planning and attention to detail, it’s certainly achievable. Take your time, enjoy the process, and before you know it, you’ll have a beautiful pergola that adds charm and functionality to your backyard. So roll up your sleeves and get started – your perfect outdoor oasis awaits!
